Description

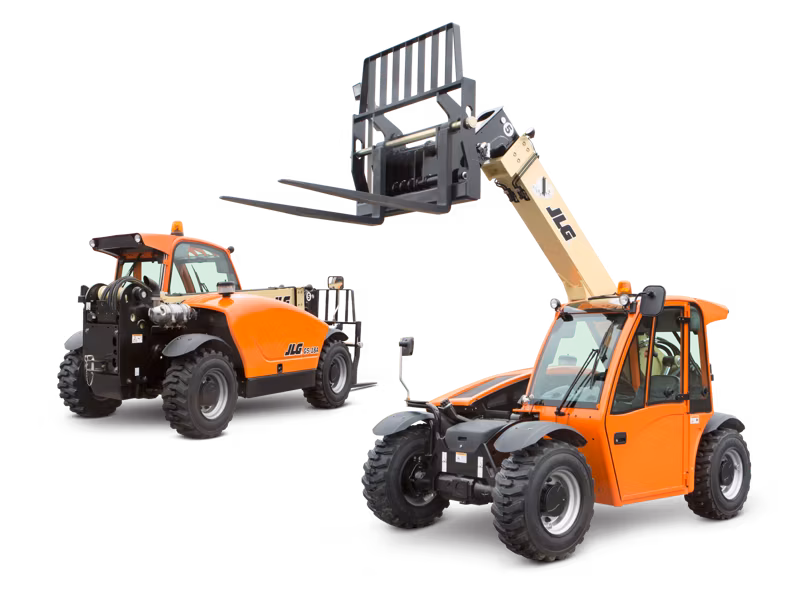

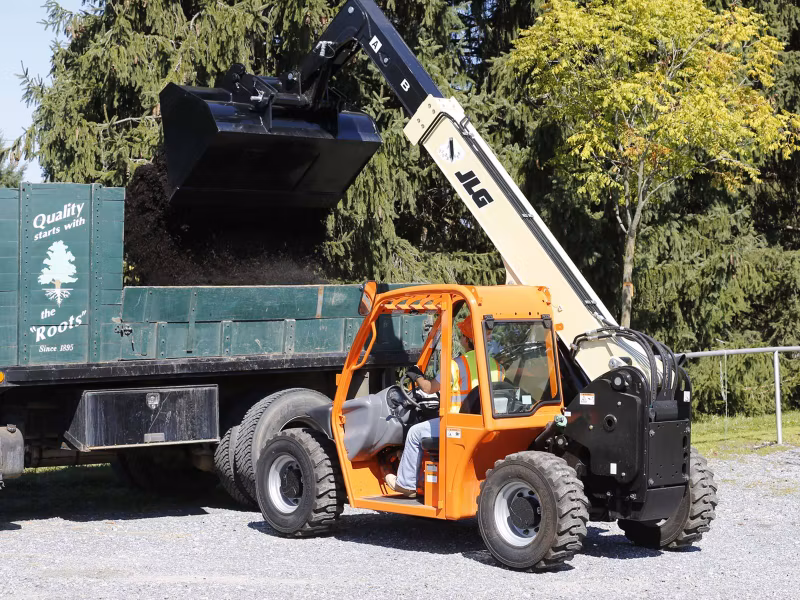

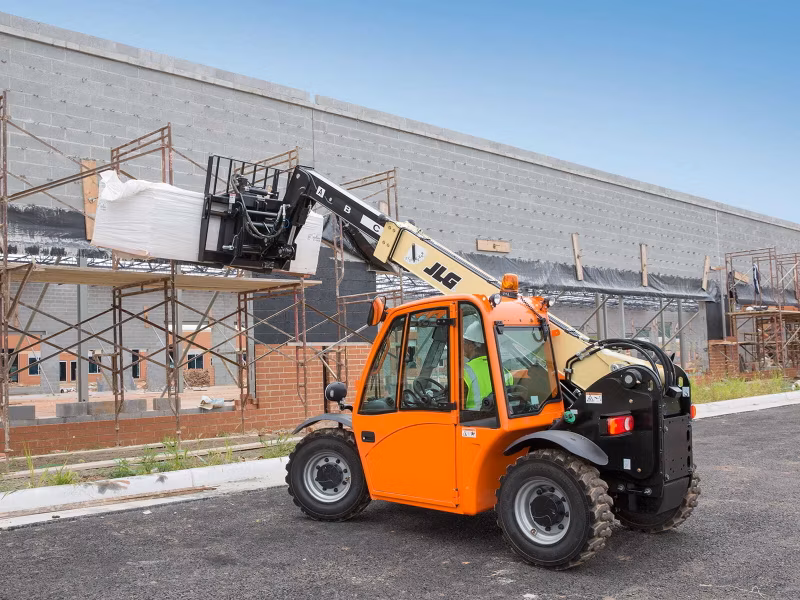

JLG G5-18A
Specifications
Manufacturer
JLG
Model
G5-18A
Year
2025
Category
Aerial Work Platforms
Subcategory
Telehandlers
Capacity - Coolant
3.5 gal / 13.25 L
Capacity - Engine Oil
9.1 gal / 34.45 L
Capacity - Fuel Tank
24 gal / 90.85 L
Engine Horsepower
74 hp / 55.20 kW
Engine Manufacturer
Deutz
Engine Model
TD 2.9L L4 T4F
Maximum Engine RPM
1800 rpm
Axle-Front
High Bias, Limited Slip
Axle-Rear
Planetary
Capacity - Hydraulic Reservoir
16 gal / 60.57 L
Function Pump Type
Gear
Hydraulic System Flow
19.1 gal/min / 72.29 L/Min
Hydraulic System Pressure
3500 psi / 245.11 Kg/cm2
Operating Vehicle Weight
11000 lb / 4989.52 kg
Service Brake Type
Wet Multi-Disc
Transmission - Nr Forward Gears Standard
1
Transmission - Nr Reverse Gears
1
Transmission Type
Hydrostatic
Ground Clearance
11 in / 0.27 m
Machine Height
6 ft 4 in / 1.92 m
Machine Length
10 ft 9 in / 3.28 m
Machine Length (Forks)
12 ft 6 in / 3.82 m
Machine Width
6 ft / 1.82 m
Tire Size
12x16.5 Pneu
Wheelbase
7 ft 6 in / 2.29 m
