Description

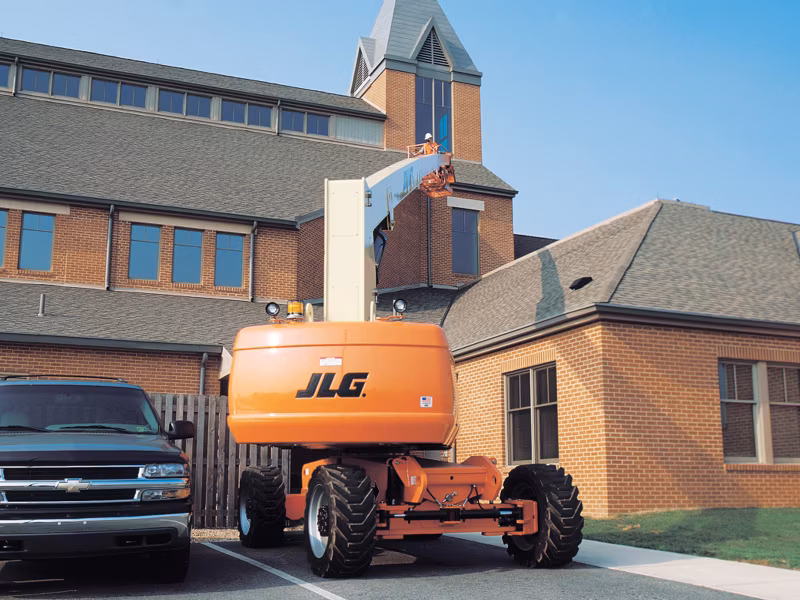

JLG 800S
Specifications
Manufacturer
JLG
Model
800S
Year
2025
Category
Aerial Work Platforms
Subcategory
Telescopic Boom Lift
Auxiliary Power
12 Volts DC
Capacity - Fuel Tank
31 gal / 117.35 L

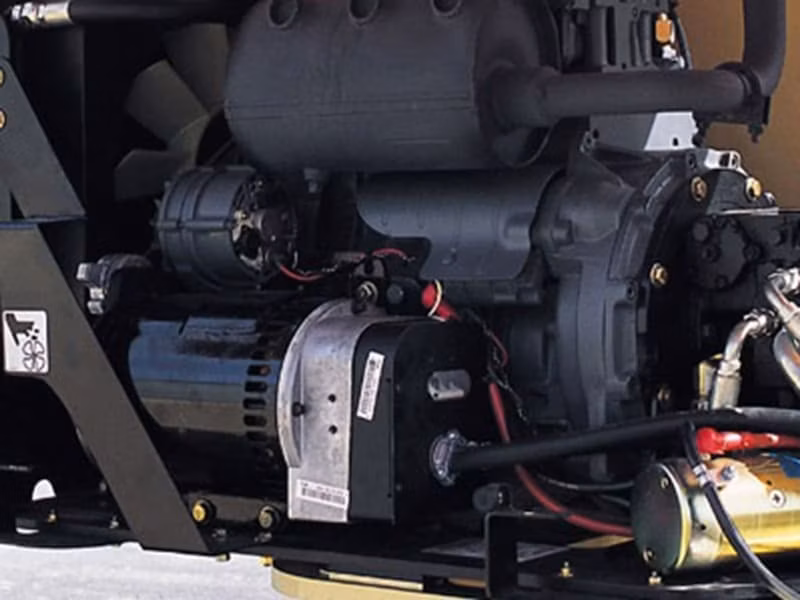

Engine Type - Diesel
DEUTZ TD 2.9L Tier 4 Final 67 hp
Engine Type - Dual Fuel
Ford MSG425 84hp
Drive Speed - 2WD
3.5 mph / 5.60 km/h
Drive Speed - 4WD
3.5 mph / 5.60 km/h
Gradeability - 2WD
25 %
Gradeability - 4WD
45 %
Platform Capacity - Restricted
1000 lb / 453.59 kg
Platform Capacity - Unrestricted
500 lb / 226.80 kg
Swing
360 Degrees
Swing Type
Continuous
Capacity - Hydraulic Reservoir
48 gal / 181.70 L
Maximum Ground Bearing Pressure
72 psi / 5.04 Kg/cm2
Machine Weight
33030 lb / 14982.16 kg
Axle Oscillation
8 in / 0.2 m
Turning Radius - Outside
19 ft 8 in / 5.99 m
Ground Clearance
11 in / 0.28 m
Machine Height
9 ft 11 in / 3.02 m
Machine Length
37 ft 3 in / 11.35 m
Machine Width
8 ft 2 in / 2.49 m
Platform Dimension A
3 ft / 0.91 m
Platform Dimension B
8 ft / 2.44 m
Tailswing
4 ft 8 in / 1.42 m
Tire Size
15-625 Foam Filled
Horizontal Outreach
71 ft / 21.64 m
Platform Height
80 ft / 24.38 m
