Description

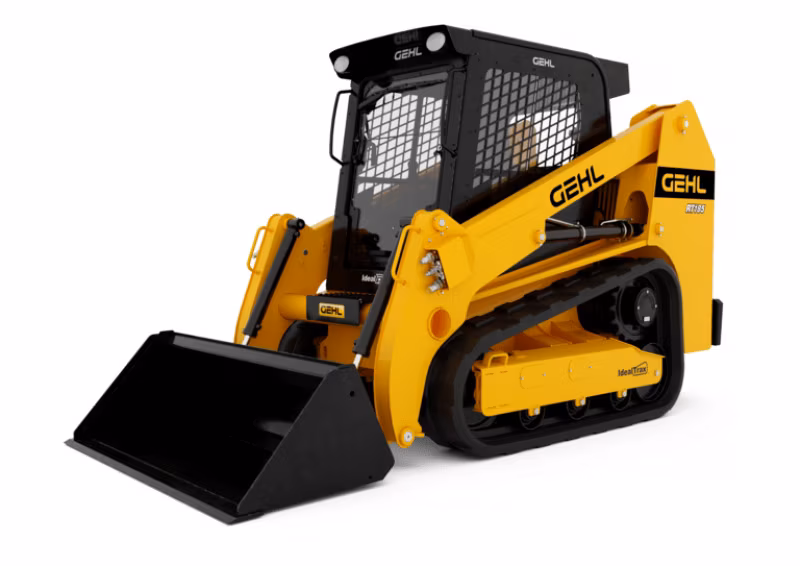

Gehl RT185 Track Loader
Specifications
Manufacturer
Gehl
Model
RT185 Track Loader
Year
2025
Category
Skid Steers
Subcategory
Track Loaders
Alternator Voltage/Amperage
14V/100A or 14V/100A
Angle of Approach
90deg or 90deg
Auxiliary Hydraulic Flow - Rated Speed @ rpm
18.5 gpm @ 2500 or 70 L/min @ 2500
Battery Volts
12V or 12V
Bucket Breakout - Lift Cylinder
5,016 lbs or 2275 kg
Bucket Breakout - Tilt Cylinder
5,354 lbs or 2429 kg
Cold Cranking Amps at Temperature
850 CCA @ 0degF or 850 CCA @ -18degC
Coolant Capacity
3.5 gal or 13.3 L
Displacement/Cylinders
203 cu in/4 or 3.319 L/4
Drawbar Pull/Tractive Effort
10,218 lbs or 4635 kg
Fuel Tank
24 gal or 91 L
Gross Power @ rpm
69.9 hp @ 2500 or 52.1 kW @ 2500
Ground Pressure
6.3 psi or 0.43 bar
Ground Speed - Single Speed
5.9 mph or 9.5 km/hr
Ground Speed - Two Speed
8.8 mph or 14.2 km/hr
Grouser Height
1" or 25 mm
Hand/Arm Vibration
<= 2.73m/s2 or <= 2.73 m/s2
Hight-Flow Hydraulic Flow - Rated Speed
34 gpm or 128.8 L/min
Hydraulic Reservior Tank
11 gal or 41.6 L
Make/Model
Yanmar/4TNV98C-NMSL or Yanmar / 4TNV98C-NMSL
Maximum Rollback at Specified Height
66.8deg or 66.8deg
Motor Type
Axial Piston with Planetary Gear Box Reduction or Axial Piston with Planetary Gear Box Reduction
Net Power @ rpm
68.4 hp @ 2500 or 51 kW @ 2500
Oil Pump Capacity
11 qts or 10.4 L
Operating Capacity at 35% Tipping Load
1,850 lbs or 839 kg
Operating Capacity at 50% Tipping Load
2,643 lbs or 1199 kg
Operating Weight
9,160 lbs or 4128 kg
Operator Ear
82.0 db or 82.0 dB
Peak Torque @ rpm
178 ft-lbs @ 1625 or 241 Nm @ 1625
Sound Power
103.0 dB or 103.0 dB
Tipping Load
5,286 lbs or 2398 kg
Track Type/Track Rollers/Roller Type
Rubber/4/Steel or Rubber/4/Steel
Track Width
12.6" or 320 mm
Transmission Pump Type
Axial Piston or Axial Piston
Type
4-Stroke Naturally Aspirated or 4-Stroke Naturally Aspirated
Whole Body Vibration
<= 0.98m/s2 or <= 0.98 m/s2
