Description

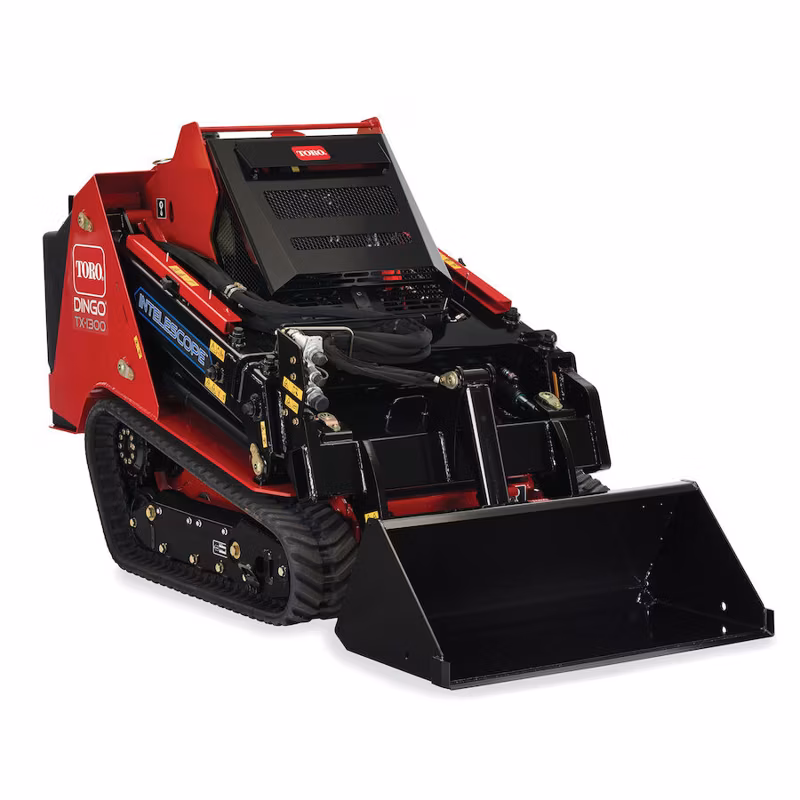

Ideal for landscape, hardscape and tree care jobs, the TX 1300 brings a new combination of power, reach and convenient control to the Toro® Dingo® lineup. With a 37 hp Yanmar® Tier IV diesel engine and 1,300 lbs of rated operating capacity, it’s the user-friendly workhorse you need to save time. The exclusive INTELESCOPE® loader arm with SmartLoad adds 26" of reach, and the telescoped hinge-pin height of 109" means you can lift loads up and over the side of a dumpster or truck for maximum productivity. Plus, you can operate the Toro patented traction controls with one hand and thumb-controlled telescoping extension and auxiliary functions (in the loader arm control) with the other to pick, place and dump materials with ease all day long.
Specifications
Manufacturer
Toro
Model
Dingo® TX 1300 (22370)
Year
2025
Category
Buckets
Subcategory
Buckets
Air Filter
Remote dual element
Hydraulic Flow Auxilary
14.3 gpm
Hydraulic Flow Traction
13.4 gpm (each pump)
Hydraulic Pressure
3,200 psi
Loader Arms
Radial
Manufacturer's Gross HP Rating (HP)
37
Manufacturer's Gross HP Rating (kW)
27
Oil Capacity (liters)
4.7
Oil Capacity (quarts)
5
Rated Operating Capacity - 35% of Tip Capacity (kg)
589
Rated Operating Capacity - 35% of Tip Capacity (lbs)
1300
Reach – Fully Raised (cm)
67.8
Reach – Fully Raised (inches)
26.7
Reservoir Capacity (gallons)
9.2
Reservoir Capacity (liters)
34.8
RPM
3000
Tip Capacity (kg)
1684
Tip Capacity (lbs)
3714
Tracks
MERT track with
Traction
Dual Hydrostatic Pump
Weight (kg)
1749
Weight (lbs)
3858
Wheelbase (inches)
39
Dump Angle
38 degrees
Dump Height (cm)
230.3
Dump Height (inches)
90.7
Hinge Pin Height (cm)
277.3
Hinge Pin Height (inches)
109.2
Max Operating Height (cm)
337.8
Max Operating Height (inches)
133
Overall Height (cm)
143.5
Overall Height (inches)
56.5
Overall Length w/bucket (cm)
261.8
Overall Length w/bucket (inches)
103.1
Overall Length w/o bucket (cm)
215.6
Overall Length w/o bucket (inches)
84.9
Overall Width (cm)
116.8
Overall Width (inches)
46
Track Length (inches)
126.6
Track Length(cm)
321.5
Track Width (cm)
23.1
Track Width (inches)
9.1
Engine Make
Yanmar
Fuel Tank (gallons)
11
Fuel Tank (liters)
42
Fuel Type
Diesel
Ground Clearance (cm)
14.9
Ground Clearance (inches)
5.9
Ground Pressure
5.5 psi
Ground Speed Forward (mph)
4.7
Ground Speed Foward (km/h)
7.6
Ground Speed Reverse (km/h)
7.6
Ground Speed Reverse (mph)
4.7
