Description

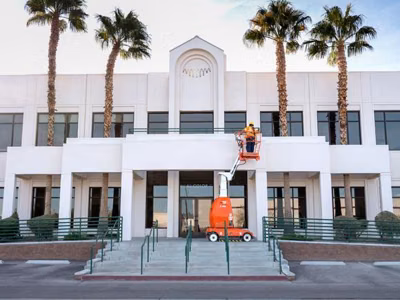

The Snorkel MB20J is a self-propelled electric mast boom lift equipped with a jib boom. Its ultra-narrow design is ideal for compact spaces that require up-and-over capabilities. Suitable for both indoor and outdoor applications, the MB20J features non-marking tires as standard.
Specifications
Manufacturer
Snorkel
Model
MB20J
Year
2025
Category
Material Handling Equipment
Subcategory
Boom Lifts
Overall length
2.41m
Overall width
0.81m
Tires
323mm non-marking rubber
Max working height
8.1m
Max platform height
6.1m
Max horizontal reach
2.6m
Platform size
0.78m x 0.73m
Stowed height
1.98m
Ground clearance
100mm
Platform capacity (SWL)
215kg
Max drive height
6.1m
Max wind speed
12.5m/s
Max drive speed (elevated)
0.48km/h
Max drive speed (stowed)
3.2km/h
Raise / lower time
54 / 26 seconds
Inside turning radius
0.3m
Outside turning radius
1.83m
Controls
proportional
Drive system
electro/hydraulic
Power source
4 x 6v x 375 Ah batteries
Weight
2,590kg
Jib length
1.02m
Jib arc
130°
