Description

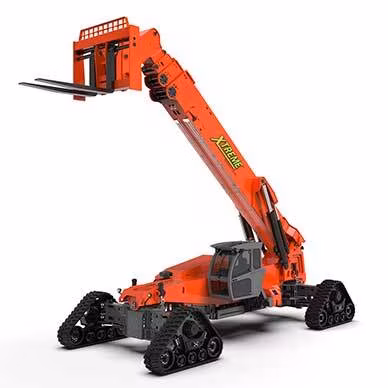

In a category all its own and affectionately nicknamed Trackzilla, the XR50100-G smashes the limits of material handling capabilities. With a record-breaking 100-ft maximum lift height and forward reach of 75 ft, this telehandler is a game-changer in the world of heavy lifting. Xtreme’s first tracked machine tackles rough terrain with ease and can lift up to 50,000 lbs Engineered for operator safety and comfort, the XR50100-G, is built with all the features that make our machines so popular with users.
Specifications
Manufacturer
Xtreme Manufacturing
Model
XR50100-G
Year
2025
Category
Telehandlers
Subcategory
Mega Xtreme Capacity Roller Boom
Class Carriage
G
Capacity Weight
50,000 lbs
Frame Leveling L/R
5° below 20
Machine Weight
150,000 lbs
Engine
2,100 rpm (675hp)
Axles
Extending front & rear
Transmission
Linde hydrostat
Fuel Capacity
300 gal
Hydraulic Flow (per min)
165 gal
Hydraulic Pressure
4,000 psi
Hydraulic Oil Capacity
350 gal
Lift Height
100 ft
Forward Reach
75 ft
Length to fork face
41 in
Width retracted/extended
144 in / 204 in
Height
11 ft 7 in
Wheelbase retracted/extended
252 in / 330 in
Ground Clearance
20 in
Turning Radius
23 ft
