Description

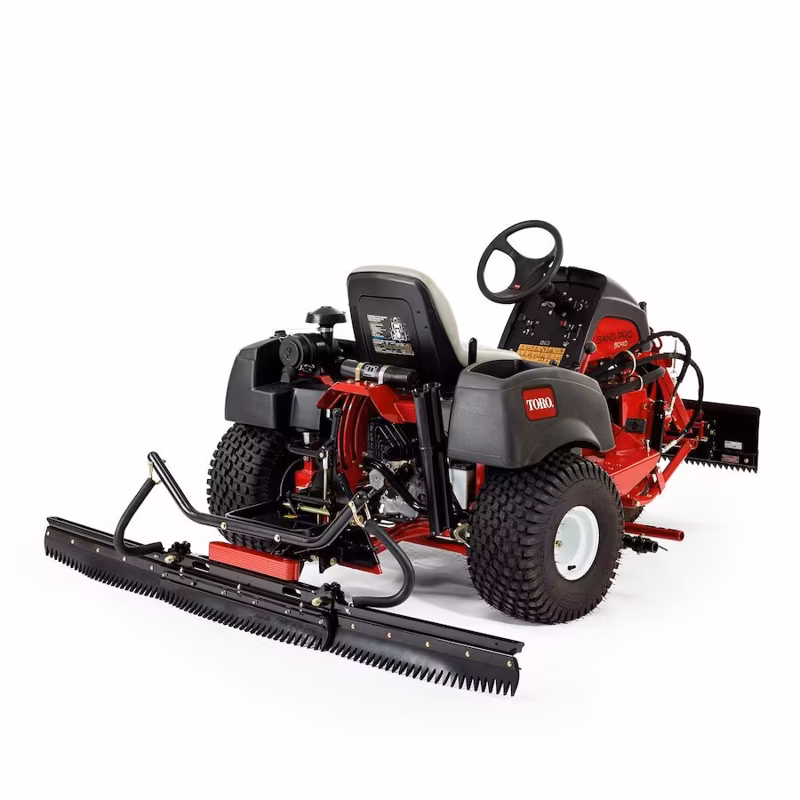

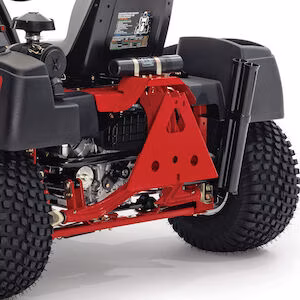

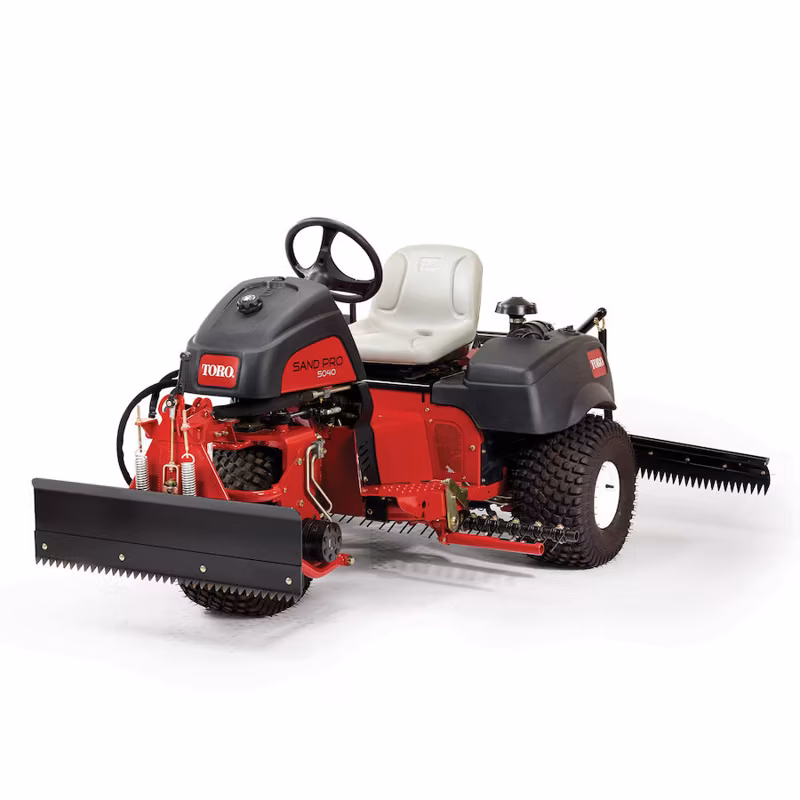

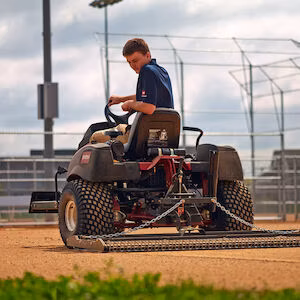

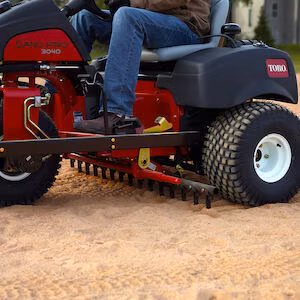

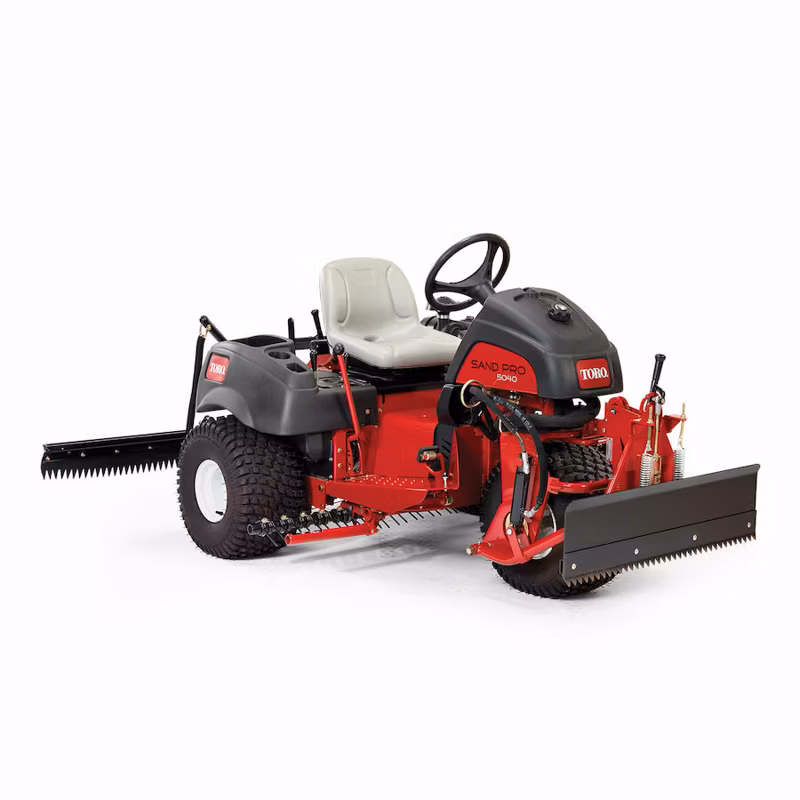

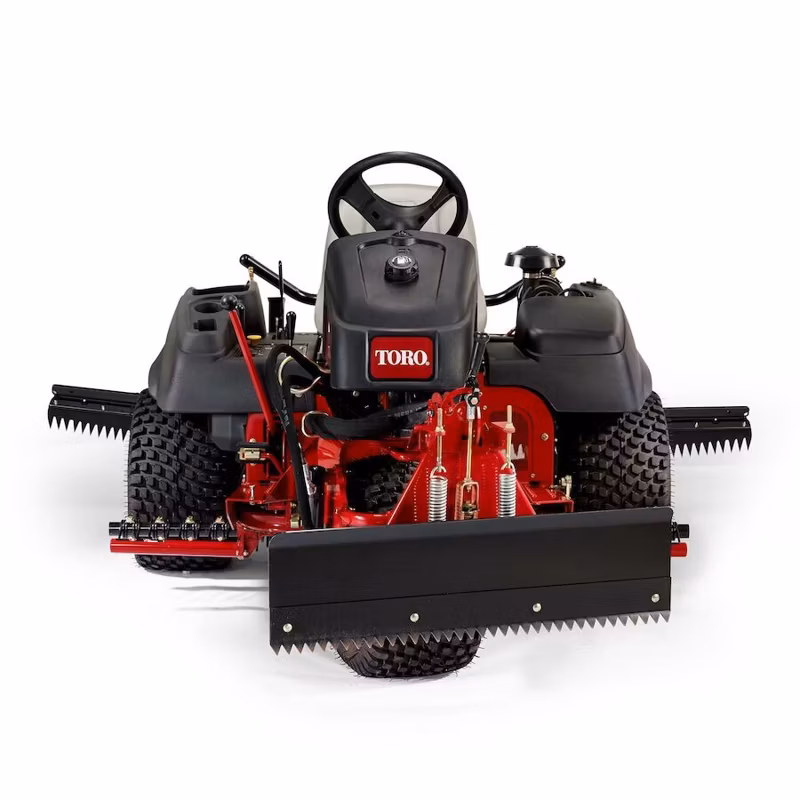

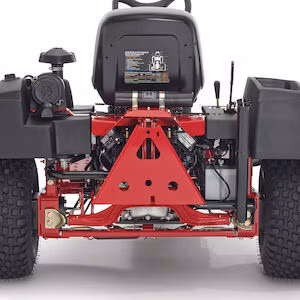

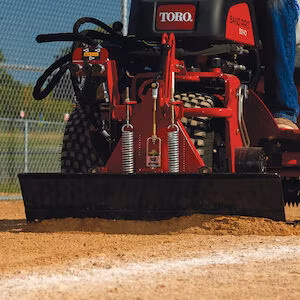

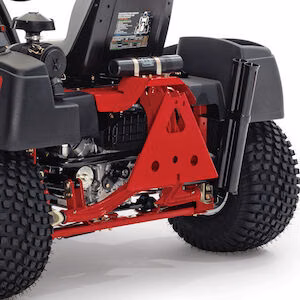

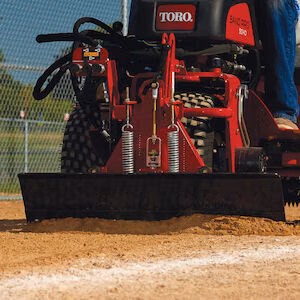

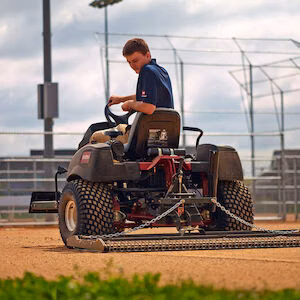

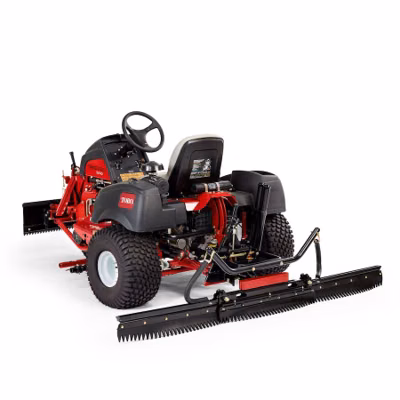

The Sand Pro(r) 5040 is the definition of versatility and function. The Quick Attach System(tm) (QAS) for front, mid and rear attachments allows for under-a-minute attachment changes. With a powerful 18 hp (13.4 kW) engine and hydraulic power steering, be more productive with over 20 attachments, including the Flex Blade which raises and lowers hydraulically. Each attachment was specifically designed to take the operator influence out of the equation for high performance and a consistent surface finish
Specifications
Manufacturer
Toro
Model
Sand Pro® 5040
Year
2026
Category
Rakes
Subcategory
Infield Groomers
Air Filter
Remote mounted 3-phase Donaldson® air cleaner
Battery
12V
Controls
Hand operated choke, throttle, and hydraulic control for raising/lowering with float. Foot pedal controls traction forward/reverse speed. Front and rear hydraulic lift and lower controls.
Cooling System
Air Cooled

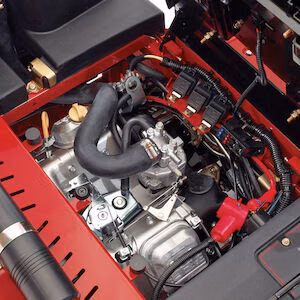

Displacement
570cc (34.8 cu in )
Frame
Tricycle vehicle with welded rectangular tubular steel frame construction. Rear engine placement.
Fuel / Power Source
Gasoline
Fuel Capacity
5.0 gallon (18.9 liter)
Gauges/Instrumentation
Hour Meter
Ground Clearance
6.0" (15.2 cm)
Ground Speed - Forward
0 - 10 mph (0 - 16 km/h)
Ground Speed - Reverse
0 - 5.0 mph (0 - 8.0 km/h)

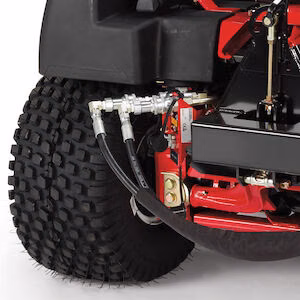

Hydraulic Oil
Toro PX Hydraulic Oil; 7.0 gallon (26.4 liter) system capacity. Polyethylene reservoir to reduce corrosion. 10 (nominal) micron replaceable cartridge.
Interlock
Neutral interlock switch, seat switch.
Oil Capacity with Filter
1.75 quart (1.8 liter)
Sound Level
83 dB(A) at operator ear, under normal operating conditions
Starting
Key Start
Steering System Description
Hydraulic power steering. 15" (38 cm) diameter steering wheel.
Tires - Front
22" x 11" - 8", 2-ply, Knobby Tread
Tires - Rear
22" x 11" - 8", 2-ply, Knobby Tread
Traction Drive (System)
3WD
Weight
930 lbs (421.8 kg), net weight less fluids
Height
45.25" (114.9 cm)
Overall Width
58" (147 cm)
Product Length
67.5" (171.5 cm)
Wheelbase
42.75" (108 cm)
