Description
SkyTrak is the number one selling brand in North America for a reason. These machines deliver what you need, when you need it. And they've been redesigned to deliver even more comfort and productivity. SkyTrak telehandlers feature improved boom function speeds, a single joystick for greater multifunction capability, an integrated arm rest and optional air conditioning for increased comfort. Tier 4 Final engines are fuel-efficient with less environmental impact. Plus, engine parts and other serviceable components are easily accessible for quicker maintenance. Get ready to settle in for a full day’s work.
Specifications
Manufacturer
SkyTrak
Model
10054
Year
2026
Category
Telehandlers
Subcategory
Telehandlers
Brakes
Service: Wet multi-disc
Drawbar Pull
24,500 lbs (11,113.01 kg)

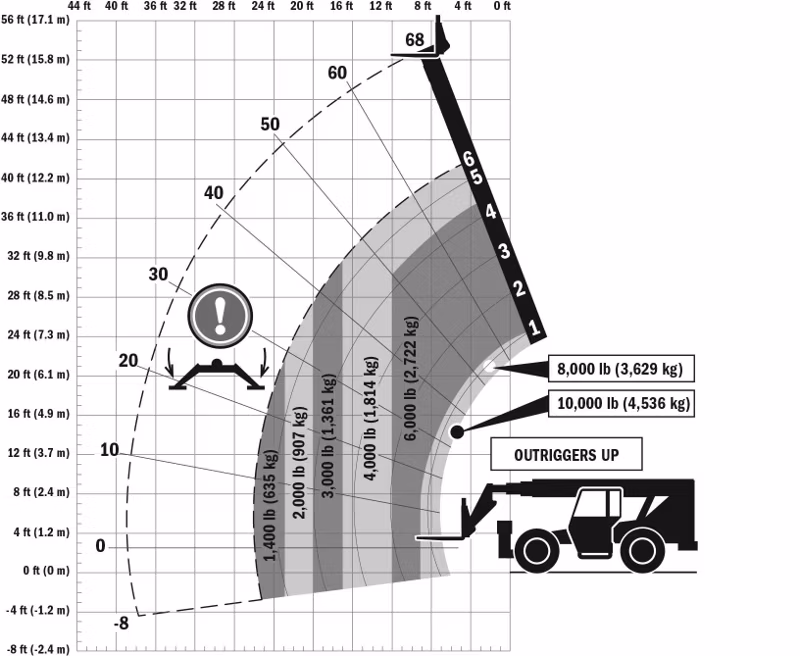

Lift Capacity
10,000 lbs (4,535.92 kg)
Lift Capacity at Max Reach
1400 lb (635.03 kg)
Lift Speed
16 sec
Lower Speed
15 sec
Max Load @ Max Reach
3,000 lbs (1,360.78 kg)
Outriggers Up Lift Capacity Full Height
4000 lb (1814.37 kg)
Outriggers Up Lift Capacity Full Reach
38 ft 9 in (11.81 m)
Outriggers Up Max Lift Height
53 ft 2 in (16.21 m)
Speed - Maximum Lift
16.4 sec
Speed - Maximum Lower
14.7 sec
Speed - Maximum Telescope In
15.9 sec
Speed - Maximum Telescope Out
17.6 sec
Tires
400/75-28
Travel Speed - High
20 mph (32.19 km/h)
Ground Clearance
1 ft 6 in (0.46 m)
Machine Height
8 ft 4 in (2.54 m)
Machine Length
20 ft 8 in (6.3 m)
Machine Width
8 ft 6 in (2.59 m)
Wheelbase
10 ft (3.04 m)
Frame Leveling
10 Degrees
Fuel Tank Capacity
35 gal (132.5 l)
Fuel Type
Diesel
Horsepower
110 hp (82.06 kW)
Load Center
2 ft (0.61 m)
Manufacturer
Cummins
Maximum Engine RPM
1500 rpm
Model
QSF3.8L Tier 4 Final
Outside Turning Radius
13 ft 9 in / 4.19 m
Service Brake Type
Wet Multi-Disc
