Description

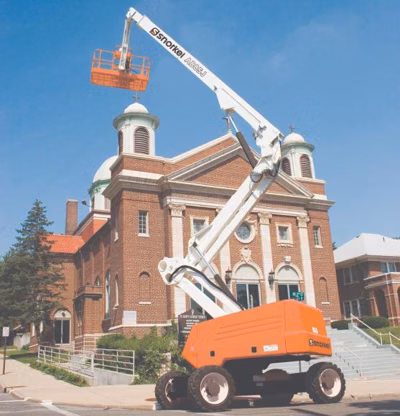

The Snorkel AB85J articulated boom lift is the largest model in the articulated boom family. Equipped with a jib boom for 140° side-to-side rotation, it provides the ultimate working envelope. Proportional controls combined with powerful 4-wheel drive delivers smooth performance on any surface.
Specifications
Manufacturer
Snorkel
Model
AB85J
Year
2026
Category
Material Handling Equipment
Subcategory
Boom Lifts
Overall width
2.6m
Overall length
12.5m
Weight
17,500kg
Tires
15 x 625 loader lug foam filled

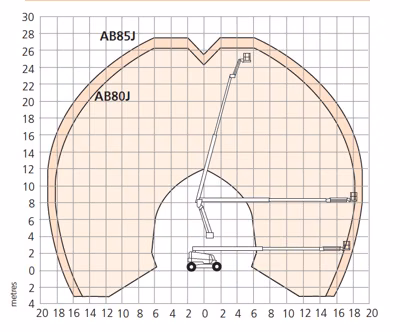

Max working height
27.7m
Max platform height
25.7m
Max horizontal reach
18.8m
Clearance height at Max outreach
8.5m
Platform size
2.44m x 0.91m
Ground clearance
330mm
Max wind speed
12.5m/s
Max drive speed (elevated)
1.0km/h
Max drive speed (stowed)
4.8km/h
Jib length
1.67m
Jib arc
135° (+70°/-65°)
Inside turning radius
2.4m
Outside turning radius
4.7m
Controls
proportional joystick
Drive system
4 wheel drive
Tailswing
0.89m
Max drive height
25.7m
Superstructure rotation
360° continuous
Stowed height
3.0m
Platform capacity (SWL)
227kg
Gradeability
30%
Raise / lower time
240 / 240 seconds
Jib rotation
140° side to side
Power source
Kubota V2403 48kW/65hp diesel - Tier 4 Final
