Description

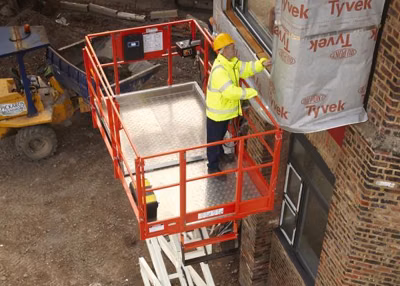

The Snorkel S3370RT compact rough terrain diesel scissor lift delivers superb rough terrain performance. Its excellent ground clearance combined with an oscillating axle tackle all terrain with ease. Standard features include auto level outriggers for stability and a roll-out deck extension for accessibility. Service and maintenance is a breeze thanks to an on-board control system with an easy-to-read diagnostic display, and all key components are easily accessible in large, twin-door side modules. A roll-out deck extension provides additional reach.
Specifications
Manufacturer
Snorkel
Model
S3370RT
Year
2026
Category
Material Handling Equipment
Subcategory
Scissor Lifts
Overall width
1.8m
Overall length
3.4m
Max platform height
10.0m
Stowed height
2.7m
Max working height
12.0m
Platform size (stowed)
1.6m x 2.8m
Platform size (extended)
1.6m x 4.0m
Deck extension length
1.2m
Min height (guardrails folded)
2.0m
Ground clearance
330mm
Max wind speed
12.5m/s
Max drive height
10.0m
Max drive speed (elevated)
0.3km/h
Max drive speed (stowed)
4.5km/h
Raise / lower time
50 / 60 seconds
Max outrigger levelling (front to rear)
6º
Max outrigger levelling (side to side)
10º
Inside turning radius
2.7m
Outside turning radius
5.0m
Tires
27 x 10.5 - 15 non-marking
Controls
proportional joystick
Drive system
4 wheel drive
Power options
Gasoline, LPG, Combination (LPG/Gasoline), Bi-energy 24V DC
Weight
3,620kg
Gradeability
35%
Platform capacity (SWL)
454kg
Power source
Kubota D-902 water cooled diesel 22.5 hp - Tier 4 Final
