Description

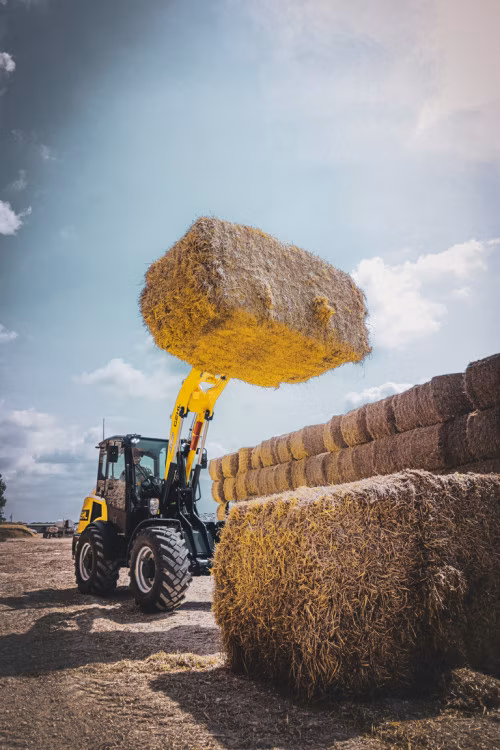

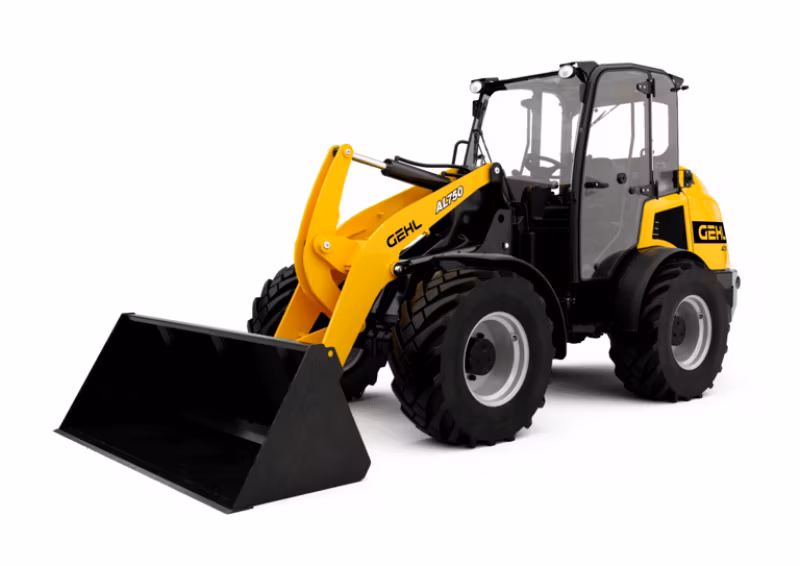

For tough jobs, you need a tougher machine. The largest Articulated Loader with a standard lift arm we offer, the AL750 is for those who can't compromise—on agricultural and construction sites or anywhere else that demands more lifting power. Swiftly getting the job done with its high-performing hydrostatic transmission and Z-Bar lift arm for extra break-out force, this rugged and robust machine chews through the hardest workdays in less time. The AL750 has your back, enabling you to do your best work from the minute you arrive at work until the minute you head home.
Specifications
Manufacturer
Gehl
Model
AL750
Year
2025
Category
Loaders
Subcategory
Articulated Loader
max height of bucket pivot point
11 ft 5 in
max lifting height (below forks)
10 ft 9 in
Breakout force with bucket
5906 daN
Static tipping load with bucket - Straight with cab
7908 lb
Static tipping load with bucket - Full turn with 4-post canopy
5778 lb
Static tipping load with bucket - Full turn with cab
6127 lb
Static tipping load with pallet forks - Straight with cab
6354 lb
Static tipping load with pallet forks - Straight with 4-post canopy
6043 lb
Static tipping load with pallet forks - Full turn with 4-post canopy
4793 lb
Static tipping load with bucket - Straight with 4-post canopy
7447 lb
Engine brand
Deutz
Engine model
TD3.6 L4
Number of cylinders / Capacity of cylinders
4 - 220 in³
I C Engine power rating / Power (kW)
74.30 Hp / 55 kW
max torque / Engine rotation
243 ft/lbs / 2300 rpm
Engine cooling system
2 water radiators + hydraulic oil
Transmission type
Hydrostatic
Number of gears (forward / reverse)
44959
max travel speed (may vary according to applicable regulations)
19 mi/h
Travel speed (laden)
19 mi/h
Differential lock
Front and rear locking of the machine
Parking brake
Manual
Hydraulic pump type
Gear pump
Hydraulic flow - Pressure
18 US gpm / 2901 PSI
Drive hydraulic system pressure
5511 PSI
Hydraulic oil
19 US gal
Fuel tank
27 US gal
Vibration to whole hand/arm
< 2.50 m/s²
Safety cab homologation
Cabin ROPS - FOPS Level 1
Unladen weight (with forks) with 4-post canopy
10540 lb
Unladen weight (with forks)
10919 lb
Wheelbase
6 ft 9 in
Overall width of 4 posts canopy
4 ft 9 in
Overall cab width
4 ft 9 in
Overall height with 4 posts canopy
8 ft 2 in
Overall height with cab
8 ft 2 in
Tilt-up angle
45 °
Tilt-down angle
45 °
External turning radius (over tyres)
11 ft 2 in
Articulation angle
45 °
Overall width less bucket
5 ft 9 in
Overall length - Less Bucket
14 ft 7 in
Ground clearance
1 ft
