Description

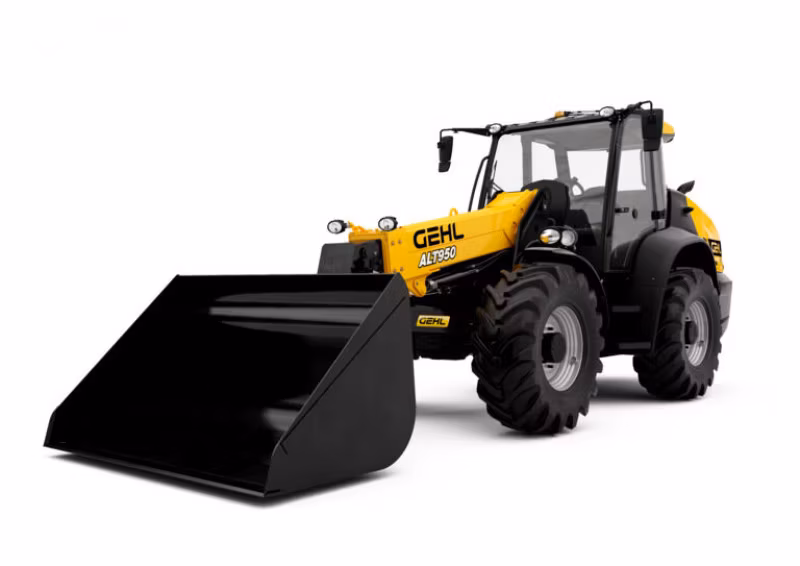

The all new ALT950 has all the lift and reach you need to get the toughest job done. With unsurpassed visibility and ease of operation, you'll be glad you chose GEHL. The GEHL ALT950 Telescopic Articulated Loader features simple-to-use controls at your finger tips, while also positioning the operator above the load for safe operation and excellent view of the dirtiest job.
Specifications
Manufacturer
Gehl
Model
ALT950
Year
2026
Category
Loaders
Subcategory
Articulated Loaders
Maximum Dump Angle at Full Height
44°
Articulation Angle from Center
44°
Static Tipping Load with Forks Straight (kg)
10,974 lbs (4978)
Static Tipping Load with Forks Full Turn (kg)
9,142 lbs (4147)
Bucket Breakout (daN)
15,129 lbf (6730)
Operating Weight with Bucket
18,717 lbs (8490)
Fuel Tank Capacity (L)
40 gal (150)
Maximum Travel Speed (kph)
25 mph (40)
Tire Size - Standard
460 / 70 R24 159A8 A580 - Alliance
Height to Top of Cab / ROPS (m)
8' 10" (2.7)
Width over Tires (m)
7' 6" (2.29)
Length to Carriage (m)
18' 9" (5.72)
Maximum Lifting Height - below forks (m)
17' 0" (5.2)
Outer Turning Radius (m)
13' 9" (4.2)
Work Hydraulic System Flow (L/min)
42 gpm (158)
Drive Hydraulic System Pressure (bar)
3,000 psi (270)
Drive Hydraulic Reservoir Capacity (L)
40 gal (150)
Make
Deutz
Model/Number of Cylinders
TD 4.1 L4 / 4
Power @ 2300 rpm (kW)
143 hp (105)
Displacement (cm3)
1607 in3 (4083)
