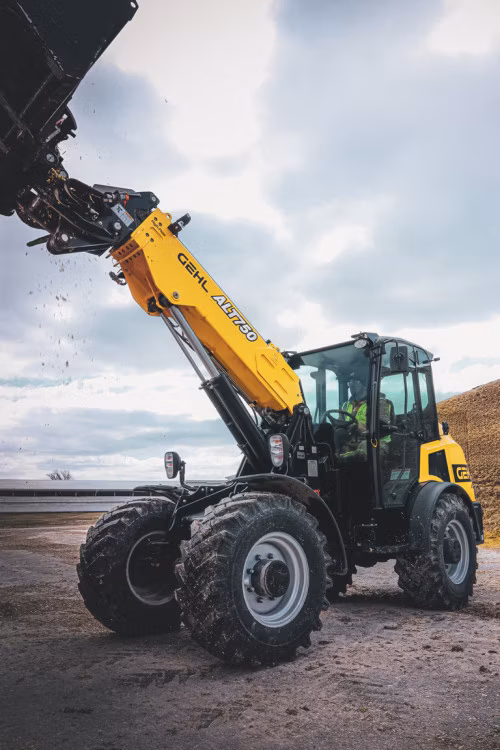

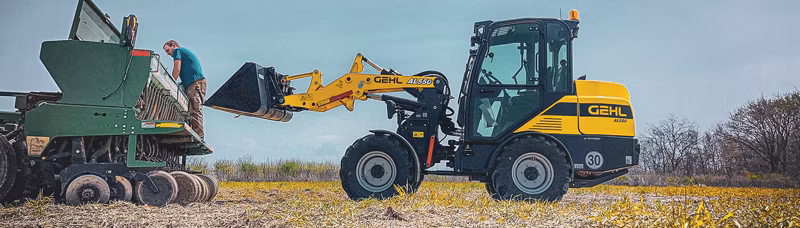

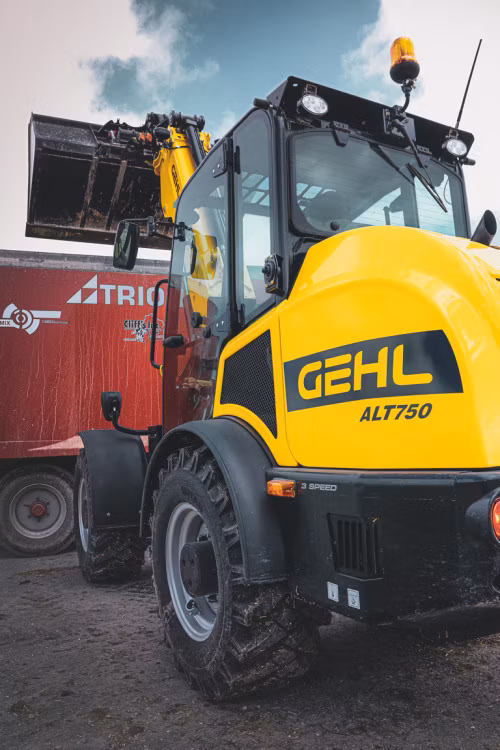

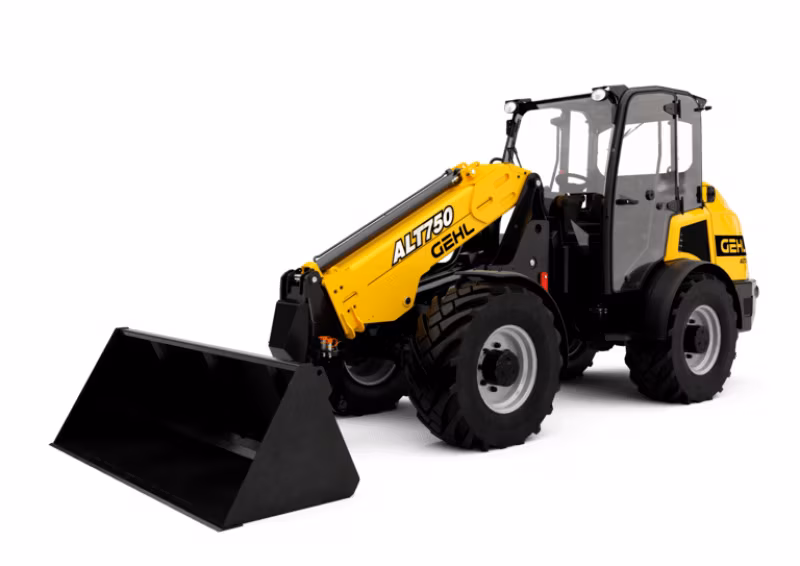

Description
The ALT750 pushes your lift to new boundaries with its telescopic boom on an already agile chassis. The hydrostatic transmission gives you smooth, reliable power to get the job done. True 360° visibility allows GEHL to stay true to what's most important - keeping you safe. Stay comfortable all day long in a fully adjustable operator station that helps you work hard, all day long.
Specifications
Year
2026
Model
ALT750
Category
Loaders
Subcategory
Articulated Loaders
Manufacturer
Gehl
Bucket Breakout
10,052 lbs
Operating Weight
12,300 lbs
Tire Size - Standard
405 / 70-20
Fuel Tank Capacity (L)
30 gal (115)
Height to Top of Cab / ROPS (mm)
8' 2" (2476)
Width over Tires (mm)
6' 5" (1957)
Length with Bucket on Ground (mm)
18' 10" (5730)
Bucket Hinge Pin Height Retracted (mm)
12' 10" (3911)
Bucket Hinge Pin Height Extended (mm)
16' 6" (5063)
Maximum Dump Angle at Full Height
45°
Outer Turning Radius (mm)
13' 3" (4030)
Articulation Angle from Center
40°
Work Hydraulic System Flow (L/min) STD
18.4 gpm (70)
Drive Hydraulic System Pressure (bar)
5,500 psi (380)
Drive Hydraulic Reservoir Capacity (L)
19.5 gal (73.7)
Straight - Retracted / Extended
7714 / 4013 lbs
Work Hydraulic System Flow (L/min)
18.4 gpm (70)
Make
Deutz
Model
TD 3.6 L4
Number of Cylinders
4
Power @ 2800 rpm
74 hp / 55 kW
Displacement (L)
220 cu in (3.6)
Maximum Travel Speed (km/hr)
7/12 mph
Battery
12-volts
Quick Enquiry
(972) 953.0229
2340 Lombardy Ln, Dallas TX 75220
⬅ Scan the QR code for more information
Loaders Gehl Machines for Sale Dallas
Find this Gehl ALT750 at S&H Equipment Services
2340 Lombardy Ln, Dallas TX 75220
Hours of Operation*
Today7:00am - 5:00pm
Tuesday7:00am - 5:00pm
Wednesday7:00am - 5:00pm
Thursday7:00am - 5:00pm
Friday7:00am - 5:00pm
SaturdayClosed
SundayClosed
*Local time zone: UTC -04:00
Similar Listings
2026 Gehl ALT950
Loaders • Articulated Loaders
2026 Gehl AL550
49
Loaders • Articulated Loaders
2026 Gehl AL650
54
Loaders • Articulated Loaders

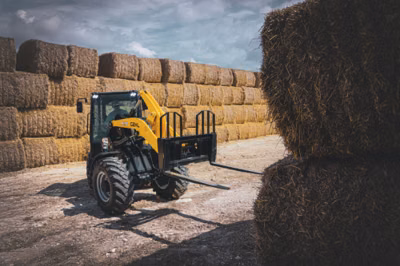

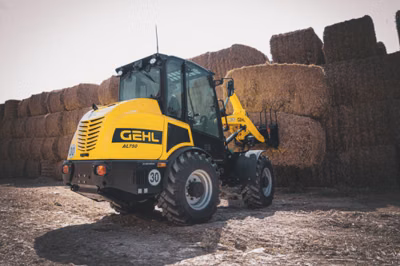

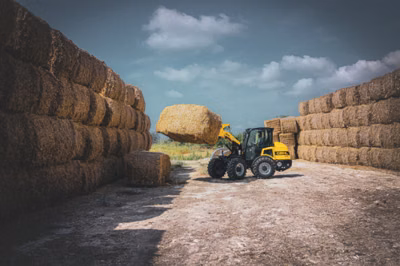

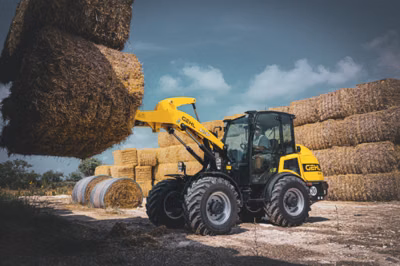

2026 Gehl AL750
