Description

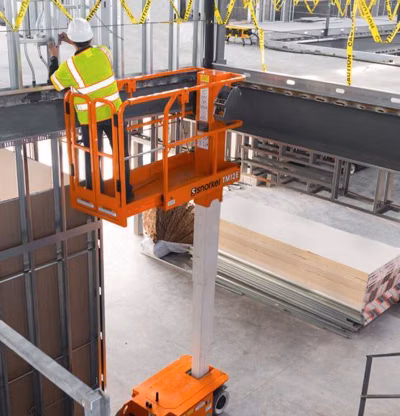

The Snorkel TM12E is an efficient self-propelled telescopic mast lift. This mast lift is compact in dimension and robust in performance with a smooth and quiet electric drive. A zero inside turning radius makes the TM12E easy to use in tight areas.
Specifications
Manufacturer
Snorkel
Model
TM12E
Year
2025
Category
Material Handling Equipment
Subcategory
Mast Lifts
Overall length
1.37m
Overall width
0.76m
Max working height
5.65m
Max platform height
3.65m
Platform size (stowed)
0.68m x 0.99m
Platform size (extended)
0.68m x 1.5m
Deck extension length
0.51m
Stowed height
1.7m
Ground clearance
76mm
Platform capacity (SWL)
227kg
Max drive height
3.65m
Max wind speed
12.5m/s
Max drive speed (elevated)
0.6km/h
Max drive speed (stowed)
4.0km/h
Raise / lower time
12.5 / 10.5 seconds
Max operating slope (side to side)
2º
Max operating slope (front to back)
2º
Inside turning radius
0m
Outside turning radius
1.4m
Tires
323mm non-marking rubber
Controls
proportional
Parking brake
2 wheel, spring-applied, electric release
Drive system
dual DC motors
Power source
24V 220Ah batteries
Battery charger
20 amp
Weight
1,016kg
Gradeability
25%
