Description

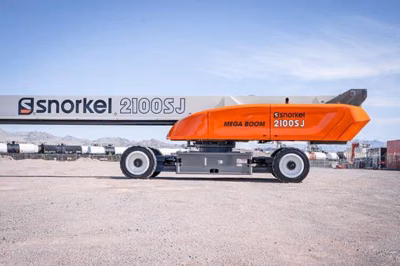

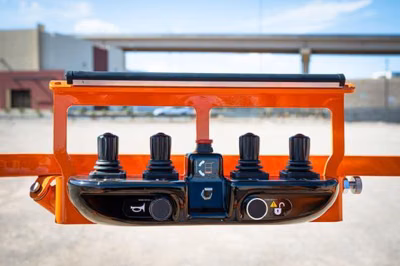

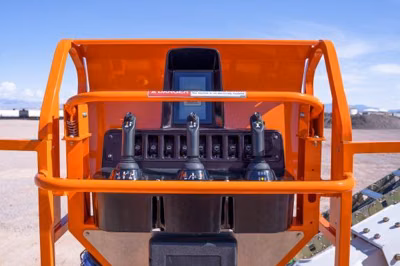

The Snorkel 2100SJ is Snorkel's largest diesel telescopic boom lift with patented design features. With an impressive reach and lift height, exceptional up and over capabilities offer a maximum horizontal reach up to 100 ft. (30.5m) with a 30 ft. (9.1m) jib boom. Two control panels on the platform allow for safe operation while working at height. Robust 4-wheel drive and multiple steering modes deliver superb rough terrain performance with a tight inside turning radius for excellent maneuverability. Its innovative wheel extension and narrow wheelbase provide stability on the job and ease of transportation.
Specifications
Manufacturer
Snorkel
Model
2100SJ
Year
2026
Category
Material Handling Equipment
Subcategory
Telescopic Boom Lifts

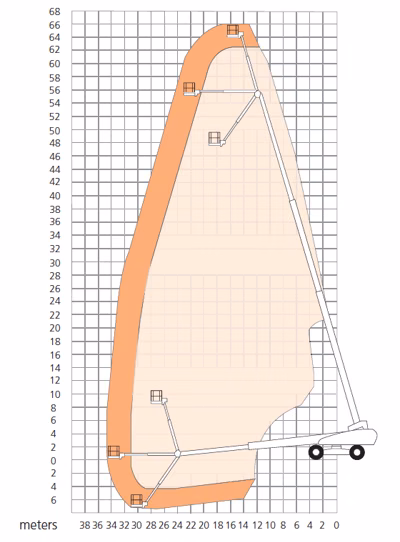

Max working height
66.0m
Max platform height
64.0m
Max horizontal reach
35.1m

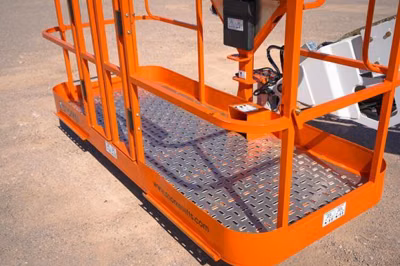

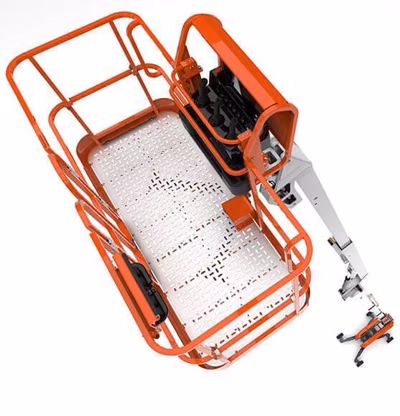

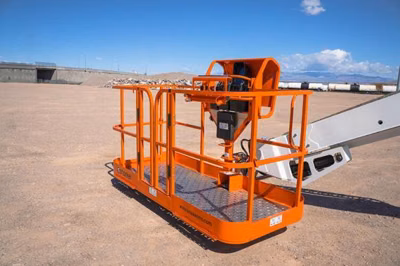

Platform size
2.4m x 0.9m
Stowed length
23m
Overall width
2.5m
Operational width (axles extended)
5.5m
Stowed height
3.0m
Ground clearance
355mm
Platform capacity - unrestricted
349kg
Platform capacity - restricted
454kg
Max drive height
64.0m
Max wind speed
12.5m/s
Max drive speed (elevated)
0.2km/h
Max drive speed (stowed)
4.0km/h
Raise / lower time
5/5.5 min
Gradeability
35%
Jib length
9.1m
Jib working arc
128º (-55° to +73°)
Superstructure rotation
360° continuous
Tailswing (axles retracted)
2.05m
Tailswing (axles extended)
0.7m
Inside turning radius (axles retracted)
3.0m
Inside turning radius (axles extended)
2.6m
Outside turning radius (axles retracted)
5.0m
Outside turning radius (axles extended)
6.4m

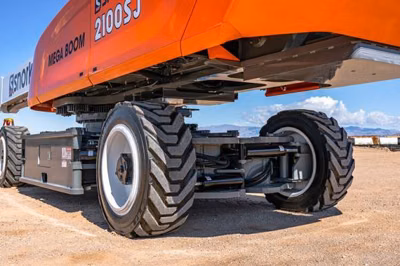

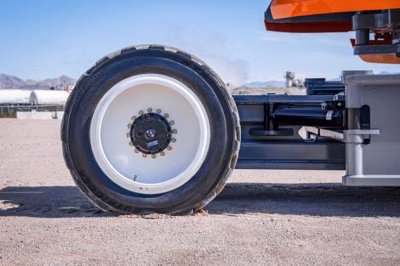

Tires
445/50-710 foam filled 24 ply

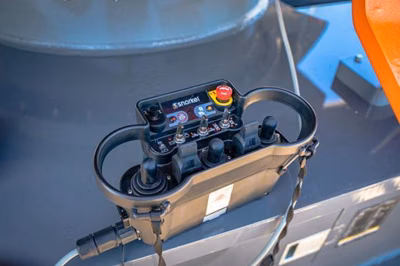

Controls
proportional joystick
Drive system
4 wheel drive
Power source
Kubota V3800, 115hp diesel - Stage V
