Description

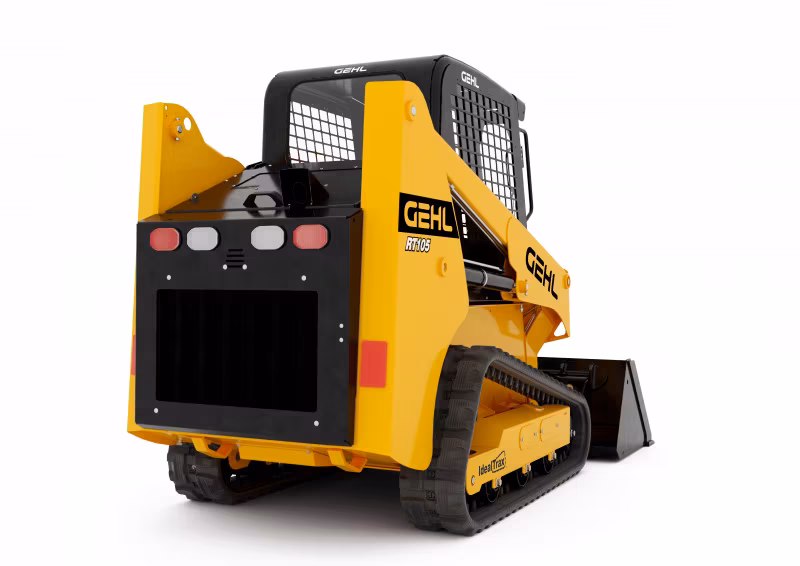

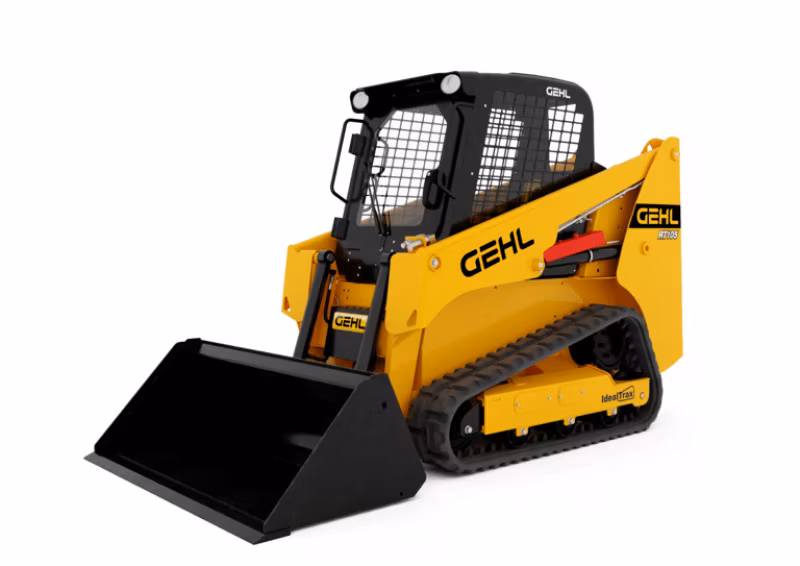

Take advantage of the performance and versatility of the RT135 track loader to efficiently and safely carry out your agricultural and construction projects. Thanks to its compactness and all-terrain maneuverability, this innovative model allows you to work with precision in the most confined places on all types of soil, including rough, uneven and muddy terrain Comfort and ease of driving, maneuverability, robustness, ultra-compact structure all make the RT135 track loader essential for the most demanding farmers and jobsites around the globe. Equipped with pilot joysticks, the RT135 is a fan favorite and offers the perfect combination of comfort and performance to improve productivity.
Specifications
Manufacturer
Gehl
Model
RT135
Year
2025
Category
Loaders
Subcategory
Track Loaders
Fuel Tank
15.7 gal
Operating Capacity at 35% Tipping Load
1,350 lbs
Operating Capacity at 50% Tipping Load One
1,929 lbs
Tipping Load
3,857 lbs
Operating Weight6,510 lbs
6,510 lbs
Drawbar Pull/Tractive Effort
7,160 lbs
Track Type/Track Rollers/Roller Type
Rubber/4/Steel
Ground Pressure
6 psi
Bucket Breakout - Tilt Cylinder
3,500 lbs
Bucket Breakout - Lift Cylinder
3,730 lbs
Ground Speed - Single Speed
6.2 mph
Hydraulic Reservior Tank
9.2 gal
Coolant Capacity
2.1 gal
Cold Cranking Amps at Temperature
800 CCA @ 0°F
Overall Operating Height - Fully Raised
144.5"
Height to Hinge Pin - Fully Raised
110"
Reach - Fully Raised
23.3"
Dump Angle - Fully Raised
40°
Dump Height - Fully Raised83.6"
83.6"
Maximum Rollback Angle - Fully Raised
98°
Overall Height at ROPS
76"
Overall Length with Bucket - w/o Counterweight
121.1"
Overall Length without Bucket - w/o Counterweight
92.9"
Specified Height
58.8"
Reach at Specified Height
20.3"
Dump Angle at Specified Height
75°
Maximum Rollback Angle at Ground
28°
Carry Position
6.5"
Maximum Rollback Angle at Carry Position
28°
Digging Position - Above Ground
+0.7"
Angle of Departure with Standard Counterweight
28°
Ground Clearance
8.4"
Track Gauge
45.2"
Track Shoe Width
11.8"
Crawler Base
46"
Overall Width - Less Bucket
57"
Bucket Width
60"
Clearance Radius - Front With Bucket
75.5"
Clearance Radius - Rear without Standard Counterweight
56.7"
Track Width
11.8"
Height to Hinge Pin - Fully Raised (mm)
110" (2794)
Auxiliary Hydraulic Flow - Rated Speed
16.8 gpm
Transmission Pump Type
Hydrostatic Pump Transmission
Motor Type
Radial Piston
Reservoir Capacity (L)
9.2 gal (34.8)
Make/Model
Yanmar/4TNV88C-KMS Tier IV
Type
4-Stroke Naturally Aspirated
Displacement/Cylinders
133.6 cu in/4
Gross Power @ rpm
46.6 hp @ 2500
Oil Pump Capacity
6.8 qts
Alternator Voltage/Amperage
12V/100A
Battery Volts
12V
