Description

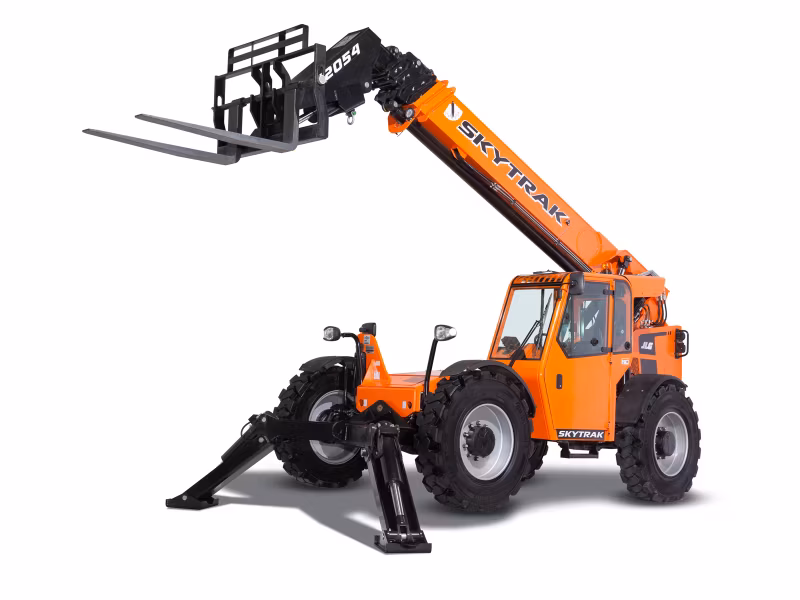

SkyTrak 12054
Specifications
Manufacturer
SkyTrak
Model
12054
Year
2025
Category
Telehandlers
Subcategory
SkyTrak Telehandlers
Drawbar Pull
30000 lb / 13607.77 kg
Frame Leveling
10 Degrees
Outriggers Up Lift Capacity Full Height
7500 lb / 3401.94 kg
Outriggers Up Lift Capacity Full Reach
2000 lb / 907.18 kg
Maximum Lift Capacity
12000 lb / 5443.11 kg
Lift Capacity at Full Height
5000 lb / 2267.96 kg
Lift Capacity at Max Reach
3500 lb / 1587.57 kg
Speed - Maximum Travel
18.2 mph / 29.29 km/h
Capacity - Fuel Tank
35 gal / 132.49 L
Axle-Front
High Bias, Limited Slip
Axle-Rear
Oscillating
Function Pump Type
Load Sensing Piston
Operating Vehicle Weight
30357 lb / 13769.70 kg
Service Brake Type
Wet Multi-Disc
Transmission - Nr Forward Gears Standard
4
Transmission - Nr Reverse Gears
3
Transmission Type
Powershift
Load Center
2 ft / 0.61 m
Outriggers Up Max Lift Height
42 ft / 12.8 m
Outriggers Up Max Forward Reach
26 ft 6 in / 8.08 m
Maximum Reach
38 ft 10 in / 11.84 m
Maximum Lift Height
53 ft 2 in / 16.21 m
Outside Turning Radius
13 ft 10 in / 4.22 m
Ground Clearance
1 ft 6 in / 0.46 m
Machine Height
8 ft 4 in / 2.54 m
Machine Length
21 ft / 6.4 m
Machine Width
8 ft 6 in / 2.59 m
Tire Size
400/75-28
Wheelbase
10 ft / 3.04 m
Engine Horsepower
110 hp / 82.06 kW
Engine Horsepower Optional
74 hp / 55.20 kW
Engine Manufacturer
Cummins
Engine Model
QSF3.8L Tier 4 F
Maximum Engine RPM
2500 rpm
