Description

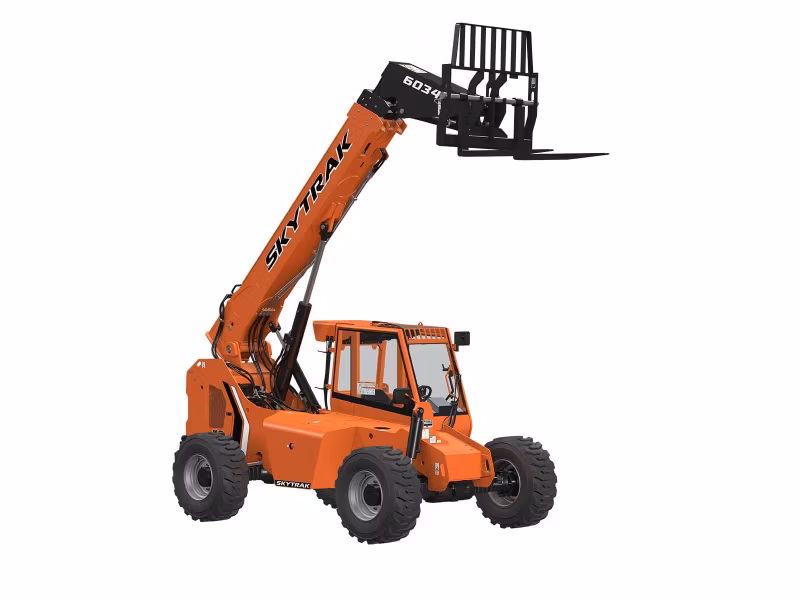

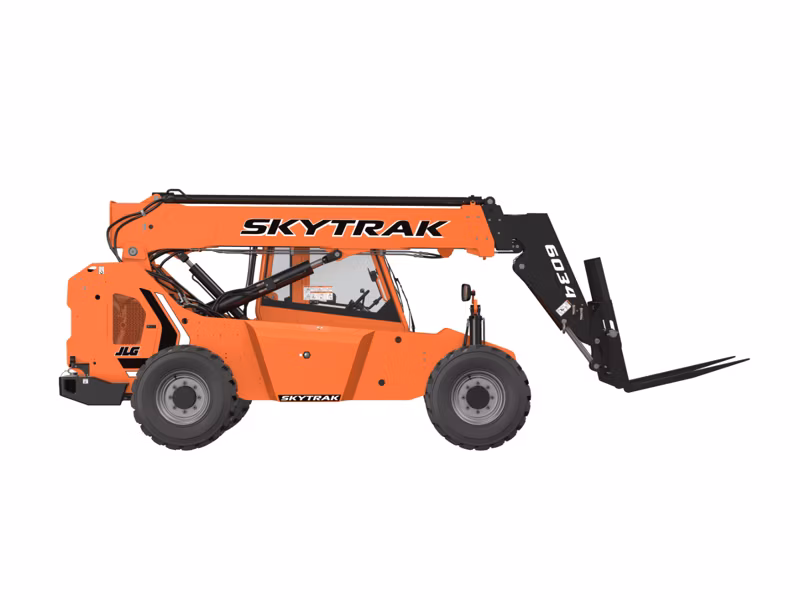

SkyTrak - 6034
Specifications
Manufacturer
SkyTrak
Model
6034
Year
2025
Category
Telehandlers
Subcategory
SkyTrak Telehandlers
Maximum Lift Capacity:
6000 lb / 2721.55 kg
Maximum Lift Height:
34 ft 5 in / 10.49 m
Maximum Reach:
23 ft 2 in / 7.06 m
Drawbar Pull
12863 lb / 5834.56 kg
Frame Leveling
10 Degrees
Lift Capacity at Full Height
6000 lb / 2721.55 kg
Lift Capacity at Max Reach
1000 lb / 453.59 kg
Load Center
2 ft / 0.61 m
Outside Turning Radius
11 ft 11 in / 3.63 m
Speed - Maximum Lift
11 sec
Speed - Maximum Lower
9 sec
Speed - Maximum Telescope In
10 sec
Speed - Maximum Telescope Out
10 sec
Speed - Maximum Travel
15 mph / 24.14 km/h
Capacity - Fuel Tank
28 gal / 105.99 L
Engine Horsepower
74 hp / 55.20 kW
Axle-Front
High Bias, Limited Slip
Axle-Rear
Oscillating
Operating Vehicle Weight
14500 lb / 6577.09 kg
Function Pump Type
Gear
Transmission - Nr Forward Gears Standard
1
Transmission - Nr Reverse Gears
1
Transmission Type
Hydrostatic
Ground Clearance
1 ft 3 in / 0.38 m
Machine Height
8 ft 2 in / 2.48 m
Machine Length
17 ft 6 in / 5.32 m
Machine Width
7 ft 11 in / 2.41 m
Tire Size
15-19.5
Wheelbase
9 ft 2 in / 2.79 m
Engine Manufacturer
Deutz
Engine Model
TCD2.9 L4
