Description

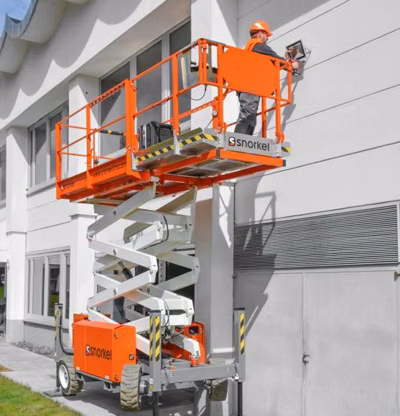

The Snorkel S2755RT narrow scissor lift is designed to be ultra-compact for outdoor work in confined spaces. Designed to deliver excellent off-road performance, this diesel-powered rough terrain scissor lift tackles all types of terrains with ease. Equipped with hydraulic outriggers as standard, the S2755RT features automatic leveling on uneven ground. Also designed with narrow dimensions, the scissor lift is easily towed on a trailer by a car or commercial vehicle between jobs.
Specifications
Manufacturer
Snorkel
Model
S2755RT
Year
2025
Category
Material Handling Equipment
Subcategory
Scissor Lifts
Overall width
1.45m
Overall length
3.3m
Stowed height
2.5m
Max working height
10.1m
Platform size (stowed)
1.4m x 2.73m
Platform size (extended)
1.4m x 3.93m
Deck extension length
1.2m
Min height (guardrails folded)
2.13m
Ground clearance
260mm
Max wind speed
12.5m/s
Max drive height
7.8m
Max drive speed (elevated)
0.5km/h
Max drive speed (stowed)
5.2km/h
Raise / lower time
26 / 30 seconds
Max outrigger levelling (front to rear)
6º
Max outrigger levelling (side to side)
10º
Inside turning radius
2.5m
Outside turning radius
4.75m
Exit/entry angle
20 degrees
Tires
0.58m x 0.22m - 12 non-marking
Controls
proportional joystick
Drive system
4 wheel drive
Power options
Bi-energy
Weight
2,750kg
Gradeability
35%
Platform capacity (SWL)
300kg
Max platform height
8.1m
Power source
Kubota diesel engine
